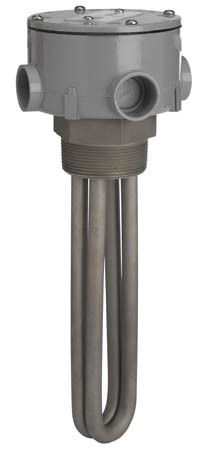

2T Series, 2" (Stainless Steel) Screw Plug Heaters

WATTS	VOLTS	OVERALL LENGTH In./(mm)	PIPE THREAD	NO. OF ELEMENTS	MODEL NUMBER	SHIP WGT. Lbs./(kg)
2000	240 480	8" (205)	2	2	2T2208 2T2408	5 (2.5)
3000	240 480	12" (305)	2	2	2T3212 2T3412	6 (3)
4000	240 480	18" (460)	2	2	2T4218 2T4418	7 (3.5)
6000	240 480	25" (635)	2	2	2T6225 2T6425	8 (4)
8000	240 480	32" (815)	2	2	2T8232 2T8432	10 (4.5)
10000	240 480	40" (1015)	2	2	2T10240 2T10440	10 (4.5)
12000	480	48" (1220)	2	2	2T12448	12 (5.5)
15000	480	54" (1375)	2	2	2T15454	15 (7)
Other sizes available, consult factory.

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: For use in most alkaline or aqueous plating solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths and screwplug available in 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE: Watt densities of 40 watts per square inch (6.2 w/cm²) ensure long service life.

CORROSION RESISTANT HEAD: Vapor resistant, flame retardant PVC enclosure.

SAFETY FEATURES:

•	Grounded construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE.

SIZES: 2,000 watts to 15,000 watts (stainless steel).

VOLTAGES: 120 to 600 volts. Single phase standard, three phase available on some models.

OPTIONS AVAILABLE (consult factory):

•	Special configurations and lengths.
•	Thermowells.
•	Explosion resistant enclosures.
•	Carbon steel or incoloy elements.
•	Lower watt densities for highly viscous solutions.
•	Integral thermostats.
•	Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
