Wet Process Heating and Cooling Equipment |
|
||
| WATTS | VOLTS |
HOT ZONE In.(mm) | OVERALL LENGTH In./(mm) |
MODEL NUMBER | SHIP WGT. Lbs./(kg) |
|---|---|---|---|---|---|
| 1000 | 120 240 |
10 (255) |
17 (430) |
3HX1117-1** 3HX1217-** |
10 (4.5) |
| 1500 | 120 240 480 |
16 (405) |
23 (585) |
3HX1.5123-1** 3HX1.5223-** 3HX1.5423-** |
11 (5) |
| 2000 | 120 240 480 |
22 (560) |
29 (735) |
3HX2129-1** 3HX2229-** 3HX2429-** |
12 (5.5) |
| 3000 | 240 480 |
29 (735) |
35 (890) |
3HX3235-** 3HX3435-** |
14 (6.5) |
| 4000 | 240 480 |
39 (990) |
47 (1195) |
3HX4247-** 3HX4447-** |
17 (8) |
| 5000 | 240 480 |
48 (1220) |
59 (1500) |
3HX5259-** 3HX5459-** |
20 (9) |
| 6000 | 240 480 |
56 (1420) |
68 (1725) |
3HX6268-** 3HX6468-** |
23 (10.5) |
| Three phase
standard. **Thermal Overload Protection |
|||||
Product Features and Benefits:
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

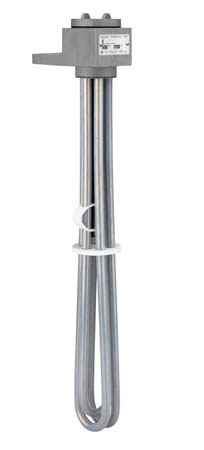

RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.
OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch, 1.5w/cm2) for long service life.
CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.
SAFETY FEATURES:
• Grounded internal metal element. • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C). • Non-floating construction. CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE (except 600 volts).
SIZES: 1,000 watts to 6,000 watts.
VOLTAGES: 120 to 600 volts. Three phase standard, single phase available.
OPTIONS AVAILABLE (consult factory):
• Replaceable thermal protectors:
• P4: for solutions from 180°F (82°C) to 230°F (110°C).• Resettable thermal protectors:
• P2: bi-metal switch for solutions up to 180°F (82°C).
• P8: type-J thermocouple for solutions from 180°F (82°C) to 230°F (110°C).
• P3: type-J thermocouple for solutions from 230°F (110°C) to 300°F (150°C).• Longer vertical lengths (cold zones). • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately). • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180°F (82°C) (sold separately). • Special configurations. • Longer wire and conduit lengths. • Lower watt densities for highly viscous solutions and technical acids. • Temperature and level controls sized to match the heater. DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
Guards available recommended for all fluoropolymer and quartz heaters.
Standard guards made of polypropylene. Special guards made of fluoropolymer available for quartz and fluoropolymer heaters.
All heaters must be operated in conjunction with appropriate temperature controls and thermal systems.
