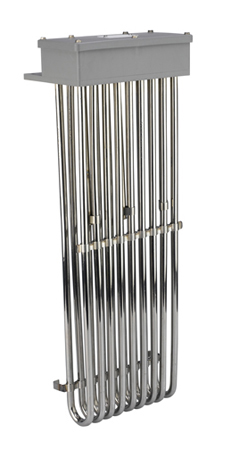

9HS Series, Nine Element Stainless Steel Heaters

WATTS

VOLTS

HOT ZONE In./(mm)

OVERALL LENGTH In./(mm)

MODEL NUMBER

SHIP WGT. Lbs./(kg)
9000 240
480		 10
(255)		 17
(430)		 9HS9217-**
9HS9417-**		 16
(7.5)
13500 240
480		 16
(405)		 23
(585)		 9HS13.5223-**
9HS13.5423-**		 19
(9)
22500 240
480		 20
(510)		 29
(735)		 9HS22.5229-**
9HS22.5429-**		 23
(10.5)
31500 240*
480		 25
(635)		 34
(865)		 9HS31.5234-M-**
9HS31.5434-**		 25
(11.5)

Three phase standard, single phase available as option.  Add "-1" before thermal protector designator.
* Requires welded metal junction box and permanent P2 thermal overload protection.
** Thermal Protection Systems

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and rinse tanks.  Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths in 316 stainless steel.

OUTSTANDING PERFORMANCE: Watt densities of 40 watts per square inch (6.2 w/cm2) use minimal space and ensure long service life.

CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.
• Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).
• Non-floating construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE (except 600 volts).

SIZES: 9,000 watts to 31,500 watts.

VOLTAGES: 200 to 600 volts. Three phase standard, single phase available.

OPTIONS AVAILABLE (consult factory):

• Replaceable thermal protectors:
•  P4: for solutions from 180°F (82°C) to 230°F (110°C).
• Resettable thermal protectors:
•  P2: for solutions up to 180°F (82°C).
•  P6: for solutions from 180°F (82°C) to 230°F (110°C).
• L-shaped and other special configurations and lengths.
• Longer wire and conduit lengths.
• Lower watt densities for highly viscous solutions.
• Titanium elements.
• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
