Process Technology

Wet Process Heating and Cooling Equipment

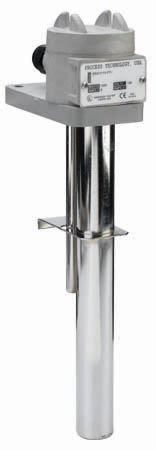

B Series, 1-1/4" Small Tank Metal Heaters

WATTS

VOLTS

HOT ZONE
In./(mm)

LENGTH
In./(mm)

304 SS

 316 SS TITANIUM

SHIP WGT.
Lbs./(kg)

500

120
240

 5 (130) 10 (255)

FB.5110-**
FB.5210-**

SB.5110-**
SB.5210-**

TB.5110-**
TB.5210-**

5 (2)

1000

120
240

 8 (205) 14 (360)

FB1114-**
FB1214-**

SB1114-**
SB1214-**

TB1114-**
TB1214-**

6 (3)

1500

120
240

 11 (280) 17 (435)

FB1.5117-**
FB1.5217-**

SB1.5117-**
SB1.5217-**

TB1.5117-**
TB1.5217-**

8 (3.5)

** Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:

• Steel.
• 304 stainless steel.
• 316 stainless steel.
• Titanium.

LONG LASTING PERFORMANCE: Watt densities of 45 watts per square inch (6.9 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.
• Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).
• Non-floating construction.

CERTIFICATIONS: UL listed to U.S. and Canadian safety requirements, and CE.

SIZES: 500 watts to 2,000 watts.

VOLTAGES: 120 to 415 volts.Single phase only.

OPTIONS AVAILABLE (consult factory):

• Replaceable thermal protectors:
•  P4: for solutions from 180°F (82°C) to 230°F (110°C).
• Resettable thermal protectors:
•  P2: for solutions up to 180°F (82°C).
•  P6: for solutions from 180°F (82°C) to 230°F (110°C).
• Special configurations and lengths.
• Longer wire and conduit lengths.
• Pre-wired plug-in connector for easy and quick installation.
• Lower watt densities for highly viscous solutions.
• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
