Wet Process Heating and Cooling Equipment |
|
||
WATTS VOLTS
OVERALL
LENGTH
In./(mm)HOT
ZONE
In./(mm)STEEL 304 ST.
STEEL316 ST.
STEELTITANIUM SHIP
WGT.
Lbs./(kg)1500 120
24011
(280)6
(155)D3P1.5111-*-**
D3P1.5211-*-**D3F1.5111-*-**
D3F1.5211-*-**D3S1.5111-*-**
D3S1.5211-*-**D3T1.5111-*-**
D3T1.5211-*-**21
(9.5)3000 240
48017
(430)10
(255)D3P3217-*-**
D3P3417-*-**D3F3217-*-**
D3F3417-*-**D3S3217-*-**
D3S3417-*-**D3T3217-*-**
D3T3417-*-**30
(14)4500 240
48023
(585)16
(405)D3P4.5223-*-**
D3P4.5423-*-**D3F4.5223-*-**
D3F4.5423-*-**D3S4.5223-*-**
D3S4.5423-*-**D3T4.5223-*-**
D3T4.5423-*-**33
(15)6000 240
48029
(735)20
(510)D3P6229-*-**
D3P6429-*-**D3F6229-*-**
D3F6429-*-**D3S6229-*-**
D3S6429-*-**D3T6229-*-**
D3T6429-*-**39
(18)7500 240
48035
(890)25
(635)D3P7.5235-*-**
D3P7.5435-*-**D3F7.5235-*-**
D3F7.5435-*-**D3S7.5235-*-**
D3S7.5435-*-**D3T7.5235-*-**
D3T7.5435-*-**45
(20.5)9000 240
48040
(1015)30
(760)D3P9240-*-**
D3P9440-*-**D3F9240-*-**
D3F9440-*-**D3S9240-*-**
D3S9440-*-**D3T9240-*-**
D3T9440-*-**51
(23)12000 240
48047
(1195)37
(940)D3P12247-*-**
D3P12447-*-**D3F12247-*-**
D3F12447-*-**D3S12247-*-**
D3S12447-*-**D3T12247-*-**
D3T12447-*-**63
(28.5)13500 240
48054
(1370)44
(1120)D3P13.5254-*-**
D3P13.5454-*-**D3F13.5254-*-**
D3F13.5454-*-**D3S13.5254-*-**
D3S13.5454-*-**D3T13.5254-*-**
D3T13.5454-*-**69
(31)15000 240
48059
(1500)49
(1245)D3P15259-*-**
D3P15459-*-**D3F15259-*-**
D3F15459-*-**D3S15259-*-**
D3S15459-*-**D3T15259-*-**
D3T15459-*-**75
(34)18000 240
48068
(1730)58
(1475)D3P18268-*-**
D3P18468-*-**D3F18268-*-**
D3F18468-*-**D3S18268-*-**
D3S18468-*-**D3T18268-*-**
D3T18468-*-**84
(38)Standard units consist of single head with single conduit. Add "-1" for single phase or "-3" for three phase. For individual heads, order 3 single tube heaters.
** Thermal Overload ProtectionProduct Features and Benefits:

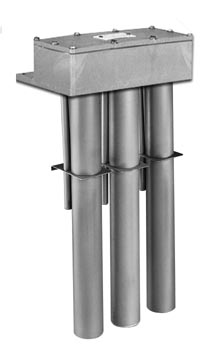

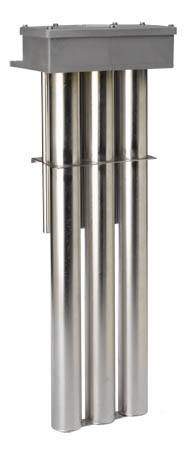

SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most concentrated aqueous alkaline solutions, plating, and phosphate solutions. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.
RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:
• Steel • 304 stainless steel • 316 stainless steel • Titanium OUTSTANDING PERFORMANCE: Low watt densities of 18 watts per square inch (52.8 w/cm2) extend service life.
CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduit.
SAFETY FEATURES:
• Grounded construction. • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C). • Non-floating construction. CERTIFICATIONS: UL (except steel sheath), CSA, and CE.
SIZES: 1,500 watts to 18,000 watts.
VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Each head is single phase standard. May be wired together as single or three phase.
OPTIONS AVAILABLE (consult factory):
• Replaceable thermal protectors:
• P4: for solutions from 180°F (82°C) to 230°F (110°C).
• P5: for solutions from 230°F (110°C) to 300°F (150°C).• Resettable thermal protectors:
• P2: for solutions up to 180°F (82°C).
• P6: for solutions from 180°F (82°C) to 230°F (110°C).
• P7: for solutions from 230°F (110°C) to 300°F (150°C).
• Special configurations and lengths. • One common head (terminal enclosure) with single conduit for single or three phase. • Longer wire and conduit lengths. • Lower watt densities for highly viscous solutions. • Temperature and level controls sized to match the heater.
DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
