Wet Process Heating and Cooling Equipment

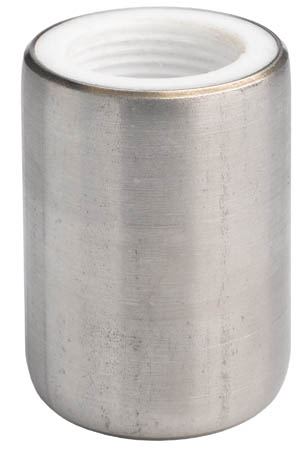

IX Series, Insulators

SIZE (NPT)	LENGTH In./(mm)	MODEL NUMBER	SHIP WGT. Lbs./(kg)
1/2"	2" (51)	1X-5-*	1 (.5)
3/4"	2" (51)	1X-3-*	1 (.5)
1"	2-1/2" (63.5)	1X-1-*	1 (.5)
1-1/4"	2-1/2" (63.5)	1X-1-1/4-*	1 (.5)
1-1/2"	2-1/2" (63.5)	1X-1-1/2-*	1 (.5)
2"	2-1/2" (63.5)	1X-2-*	1 (.5)
* S = stainless steel, T = titanium

Product Features and Benefits:

APPLICATIONS:

• Protects metal heat exchangers and plating processes from stray voltage or current.

• Prevents seizing between metal lines.

• Dampens vibrations.

RUGGED CONSTRUCTIONS: Fluoropolymer (PTFE) body with stainless steel or titanium retainer ring for added structural integrity.

CAPACITIES:

• Sizes from 1/2-inch FNPT to 2-inch FNPT.

• Maximum steam service: 50 PSIG.

OPTIONS AVAILABLE (consult factory):

• Titanium retainer rings.

• Special lengths.

• Metric sizes.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)

•	Protects metal heat exchangers and plating processes from stray voltage or current.
•	Prevents seizing between metal lines.
•	Dampens vibrations.

•	Sizes from 1/2-inch FNPT to 2-inch FNPT.
•	Maximum steam service: 50 PSIG.

•	Titanium retainer rings.
•	Special lengths.
•	Metric sizes.
