Wet Process Heating and Cooling Equipment |
|
||
| MODEL NUMBER |
PROBE LENGTH In./(mm) |
NO. OF PROBES |
CIRCUITRY |
REPLACEMENT BOARD ONLY |
PROBE SHIP WT. Lbs./(kg) |
SHIP WGT. Lbs./(kg) |
|---|---|---|---|---|---|---|
| 2(*) 6 | 6 (155) | 2 | LCB | LC | 3 (1.5) | 5 (2) |
| 2(*) 12 | 12 (305) | 2 | LCB | LC | 3 (1.5) | 5 (2) |
| 2(*) 18 | 18 (460) | 2 | LCB | LC | 4 (2) | 6 (3.5) |
| 2(*) 24 | 24 (610) | 2 | LCB | LC | 6 (2.5) | 7 (3) |
| 2(*) 30 | 30 (765) | 2 | LCB | LC | 7 (3) | 8 (3.5) |
| 2(*) 36 | 36 (915) | 2 | LCB | LC | 8 (3.5) | 9 (4) |
| 2(*) 48 | 48 (1220) | 2 | LCB | LC | 9 (4) | 11 (5) |
| 3(*) 6 | 6 (155) | 3 | LCB | LC | 3 (1.5) | 5 (2) |
| 3(*) 12 | 12 (305) | 3 | LCB | LC | 3 (1.5) | 5 (2) |
| 3(*) 18 | 18 (460) | 3 | LCB | LC | 4 (2) | 6 (2.5) |
| 3(*) 24 | 24 (610) | 3 | LCB | LC | 6 (2.5) | 7 (3) |
| 3(*) 30 | 30 (765) | 3 | LCB | LC | 7 (3) | 8 (3.5) |
| 3(*) 36 | 36 (915) | 3 | LCB | LC | 8 (3.5) | 9 (4) |
| 3(*) 48 | 48 (1220) | 3 | LCB | LC | 9 (4) | 11 (5) |

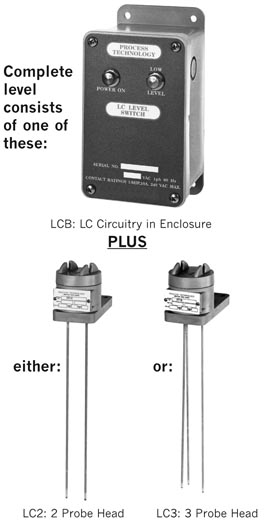

(LC2) two probe units for single level control. (LC3) three probe units for two point control and refill/pump down capabilities. Four and five probe units are available for multiple level requirements, consult factory. Can be ordered as part of a combination temperature control assembly.
SPECIFY PROBE MATERIAL: |
||||||
Product Features and Benefits:
IMPROVES PROCESS CONTROL:
• Provides automated control and consistent liquid levels in most conductive aqueous processes, waste treatment tanks and when leak detection is required. • Adds protection against fires and tank damage associated with low-level conditions. • Dual probe units (LC2): for single point control. • Multi probe units (LC3): for two-point control and refill/pump down applications. CORROSION RESISTANT PROBES:
• Fluoropolymer (PTFE) covered: 316 stainless steel, titanium, Hastelloy C® and graphite tipped Hastelloy probe materials. • Lengths: up to 48-inches (1220mm) standard. • Field trimmable (except graphite probes). CORROSION RESISTANT ENCLOSURES:
• Control enclosure: gasketed UL Type 1, IP60, polypropylene box with stainless steel hardware. • Probe enclosure: vapor tight, polypropylene head with 10-foot (3m) flexible lead and quick connect plug for easy connection to remote circuitry. CERTIFICATIONS: cUL and CE.
CAPACITIES:
• Relay rating: 10-amps at 120/208 to 240 volts, 50/60 Hz, single pole, double throw. • Sensing output: 14.5 VAC. • Ambient temperature range: 0° F (-18° C) to 104° F (40° C). • Maximum solution resistance: 70,000 ohm-CM. • Single phase only. SAFETY FEATURES:
• Ground connection on circuit board. • Minimal AC sensing current has no affect on plating processes. OPTIONS AVAILABLE (consult factory):
• Probe lengths up to 20-foot (6m). • Can be pre-wired into combination controls. • Fluid stilling chambers. • Thermal wells built into probe enclosure. • Longer flexible cords. • Cord extensions for existing units. • 4, 5 or 6-probe devices for multiple level control applications. NOTE: Do not use in flammable solutions or in the presence of flammable gases. Not for use in deionized water, oil or other non-conductive solutions.
DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
DOWNLOAD THE LC MANUAL
