Process Technology

Wet Process Heating and Cooling Equipment

FLX Series, 3" 150 Lb. Single Element and 6" 150 Lb. Three Element Style Fluoropolymer (PTFE Flanged) Heaters

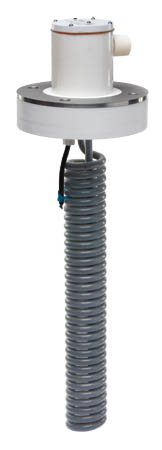

  3FLX PICTURED

FLX SERIES, 3" 150 LB. STYLE SINGLE ELEMENT
FLUOROPOLYMER (PTFE) FLANGED HEATERS

WATTS

VOLTS

NO. OF
ELEMENTS

 LENGTH
In./(mm)

MODEL
NUMBER

SHIP WGT.
Lbs./(kg)
1000

240

 1 11
(280)		 3FLX1211-** 20
(9)
2000

240
480

 1 16
(405)		 3FLX2216-**
3FLX2416-**		 23
(11)
3000

240
480

 1 21
(535)		 3FLX3221-**
3FLX3421-**		 26
(12)
4000 240
480		 1 28
(710)		 3FLX4228-**
3FLX4428-**		 29
(13.5)
5000 240
480		 1 32
(815)		 3FLX5232-**
3FLX5432-**		 32
(15)
6000 240
480		 1 35
(890)		 3FLX6235-**
3FLX6435-**		 35
(16)

Heaters rated up to 50 PSI service.
**Thermal Overload Protection
FLX SERIES, 6" 150 LB. STYLE THREE ELEMENT
FLUOROPOLYMER (PTFE) FLANGED HEATERS

WATTS

VOLTS

NO. OF
ELEMENTS

 LENGTH
In./(mm)

MODEL
NUMBER

SHIP WGT.
Lbs./(kg)
3000

240
480

 3 11
(280)		 6FLX3211-**
6FLX3411-**		 42
(19)
6000

240
480

 3 16
(405)		 6FLX6216-**
6FLX6416-**		 51
(23)
9000

240
480

 3 21
(535)		 6FLX9221-**
6FLX9421-**		 60
(27)
12000 240
480		 3 28
(710)		 6FLX12228-**
6FLX21428-**		 66
(30)
15000 240
480		 3 32
(815)		 6FLX15232-**
6FLX15432-**		 75
(34)
18000 240
480		 3 35
(890)		 6FLX18235-**
6FLX18435-**		 84
(38)

Heaters rated up to 50 PSI service.
**Thermal Overload Protection



Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and plating solutions.  Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel sheath reduces permeation and eliminates the need for gas purge systems.  Guaranteed 100% pinhole free.

•

Rated for up to 50 PSI service.

•

Vapor tight polypropylene head.

LONG LASTING PERFORMANCE: Low watt densities of 10 watts per square inch (1.5 w/cm2) ensure long service life.

SAFETY FEATURES:

•

Grounded internal metal heating element.

•

Thermal protection built in.  Replaceable P1 device standard for solutions up to 180°F (82°C).

CERTIFICATIONS: CE (except 600 volts).

SIZES: 1,000 watts to 18,000 watts.

VOLTAGES: 240 or 480 volts.  120, 208, 380, 415, 600 and other voltages available.  3FLX single phase only, 6FLX single or three phase.

OPTIONS AVAILABLE (consult factory):

•

Resettable thermal protectors:
•  P8 type-J thermocouple for solutions from 180°F (82°C) to 210°F (99°C).
•  P3 type-J thermocouple for solutions from 210°F (99°C) to 250°F (121°C).

•

Special configurations and lengths.

•

Additional thermowells.

•

Integral thermostats.

•

Lower watt densities for highly viscous solutions.

•

Temperature and level controls sized to match the heater.

NOTE: Gasket and bolts not provided.  Intended for horizontal installation only.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
