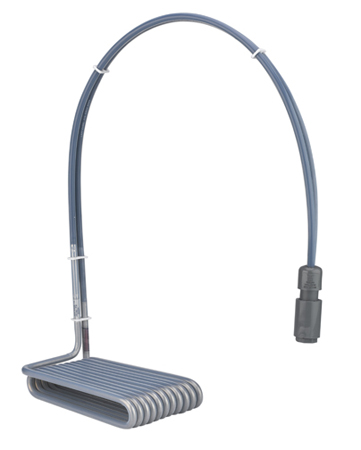

HXOL Series, Flex Riser Fluoropolymer (PTFE) Heaters

WATTS	VOLTS	WIDTH In./(mm)	LENGTH In./(mm)	MODEL NUMBER	SHIP WGT. Lbs./(kg)
1000	120 240	2 (50)	11 (280)	HXOL1102-11L- HXOL1202-11L-	6 (2.5)
1000	120 240	4 (100)	8 (205)	HXOL1104-08L- HXOL1204-08L-	6 (2.5)
2000	120 240 480	4 (100)	13 (330)	HXOL2104-13L- HXOL2204-13L- HXOL2404-13L-**	7 (3.5)
2000	120 240 480	5 (125)	10 (255)	HXOL2105-10L- HXOL2205-10L- HXOL2405-10L-**	7 (3.5)
2000	120 240 480	6 (155)	8 (205)	HXOL2106-08L- HXOL2206-08L- HXOL2406-08L-**	7 (3.5)
3000	240 480	4 (100)	18 (460)	HXOL3204-18L- HXOL3404-18L-	12 (5.5)
3000	240 480	5 (125)	12 (305)	HXOL3205-12L- HXOL3405-12L-	12 (5.5)
3000	240 480	6 (155)	11 (280)	HXOL3206-11L- HXOL3406-11L-	12 (5.5)
3000	240 480	8 (205)	8 (205)	HXOL3208-08L- HXOL3408-08L-	12 (5.5)
4000	240 480	5 (125)	18 (460)	HXOL4205-18L- HXOL4405-18L-	14 (6.5)
4000	240 480	6 (155)	14 (355)	HXOL4206-14L- HXOL4406-14L-	14 (6.5)
4000	240 480	8 (205)	11 (280)	HXOL4208-11L- HXOL4408-11L-	14 (6.5)
5000	240 480	6 (155)	18 (460)	HXOL5206-18L- HXOL5406-18L-	17 (8)
5000	240 480	8 (205)	13 (330)	HXOL5208 13L- HXOL5408-13L-	17 (8)
5000	240 480	9 (230)	11 (280)	HXOL5209-11L- HXOL5409-11L-	17 (8)
5000	240 480	10 (255)	10 (255)	HXOL5210-10L- HXOL5410-10L-	17 (8)
6000	240 480	7 (180)	18 (460)	HXOL6207-18L- HXOL6407-18L-	20 (9)
6000	240 480	8 (205)	15 (380)	HXOL6208-15L- HXOL6408-15L-	20 (9)
6000	240 480	9 (230)	13 (330)	HXOL6209-13L- HXOL6409-13L-	20 (9)
6000	240 480	10 (255)	12 (305)	HXOL6210-12L- HXOL6410-12L-	20 (9)
6000	240 480	11 (280)	11 (280)	HXOL6211-11L- HXOL6411-11L-	20 (9)
Other dimensional configurations available, consult factory. Single phase only. Fluoropolymer guards sold separately. P3 protector standard. Risers pictured in left position, right position available. **Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.

FLUOROPOLYMER GUARD SOLD SEPARATELY.

OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch, 1.5w/cm2) for long service life.

FLEXIBLE RISER: 4-foot (1.2m) continuous fluoropolymer (PTFE) cable leading to a vapor resistant PVC terminal enclosure and 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

•	Grounded internal metal element.
•	Thermal protector built in. Resettable P3 J-type thermocouple standard.
•	Non-floating construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE (except 600 volts).

SIZES: 1,000 watts to 6,000 watts.

VOLTAGES: 120 to 600 volts. Single phase only.

OPTIONS AVAILABLE (consult factory):

•	Longer fluoropolymer (PTFE) riser lengths.
•	Rigid riser with vapor resistant, flame retardant polypropylene terminal enclosure and either replaceable or resettable thermal protectors.
•	Special configurations.
•	Longer wire and conduit lengths.
•	Lower watt densities for highly viscous solutions and technical acids.
•	Temperature and level controls sized to match the heater.
•	Element purge option available for chemistries that aggressively permeate fluoropolymer sheaths.

Guards available recommended for all fluoropolymer and quartz heaters.
Standard guards made of polypropylene. Special guards made of fluoropolymer available for quartz and fluoropolymer heaters.

All heaters must be operated in conjunction with appropriate temperature controls and thermal systems.
