Wet Process Heating and Cooling Equipment

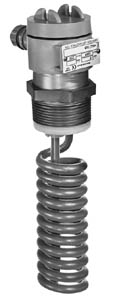

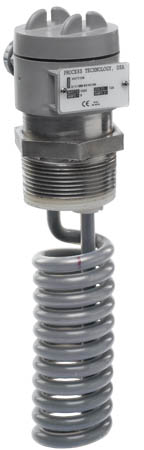

HXT Series, Fluoropolymer (PTFE) Screw Plug Heaters

WATTS	VOLTS	PIPE THREAD	OVERALL LENGTH In./(mm)	MODEL NUMBER	SHIP WGT. Lbs./(kg)
1000	120 240	2-1/2	9" (230)	HXT1109 HXT1209	9 (4)
2000	120 240 480	2-1/2	14" (360)	HXT2114 HXT2214 HXT2414	12 (5.5)
3000	240 480	2-1/2	19" (485)	HXT3219 HXT3419	15 (7)
4000	240 480	2-1/2	26" (660)	HXT4226 HXT4426	17 (8)
5000	240 480	2-1/2	30" (765)	HXT5230 HXT5430	20 (9)
6000	240 480	2-1/2	34" (865)	HXT6234 HXT6434	23 (10.5)

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and plating solutions. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel sheath and PVDF screw plug reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE: Watt densities of 10 watts per square inch (1.5 w/cm²) ensure long service life.

CORROSION RESISTANT HEAD: Vapor tight, flame retardant PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded internal metal heating element.

CERTIFICATIONS: CE.

SIZES: 1,000 watts to 6,000 watts.

VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Single phase only.

OPTIONS AVAILABLE (consult factory):

• Special configurations and lengths.

• Thermowells.

• Integral thermostats.

• Lower watt densities for highly viscous solutions.

• Temperature and level controls sized to match the heater.

NOTE: Intended for horizontal installation only.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
