Wet Process Heating and Cooling Equipment

PART NUMBER CHANGES

Frustrated with long model numbers that won’t integrate with your computer system? Hopefully we can help. Effective January 5th, 2009, Process Technology will be simplifying and shortening its model number scheme to reduce to the number of characters needed for each part. Listed below is a new key which will guide you through some of the changes.

Details regarding other model number changes can be obtained by contacting our customer service department.

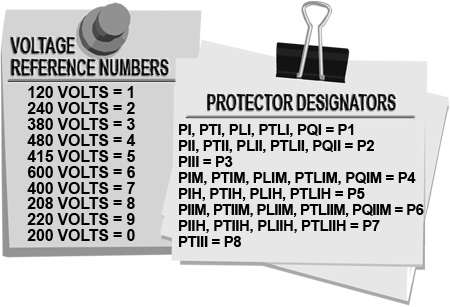

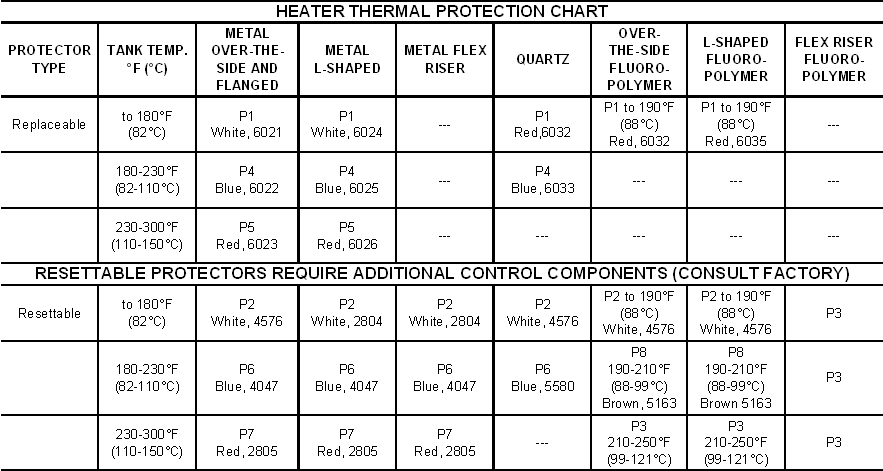

• Use P1 through P8 as the thermal protector designator when ordering heaters
VOLTAGES AVAILABLE (MOST HEATERS AND CONTROLS)

Voltages are designated in Process Technology model numbers as follows:
120 volt = 1
240 volt = 2
380 volt = 3
480 volt = 4
415 volt = 5
600 volt = 6
400 volt = 7
208 volt = 8
220 volt = 9

Specify single or three phase when ordering. Consult factory for other voltages.
