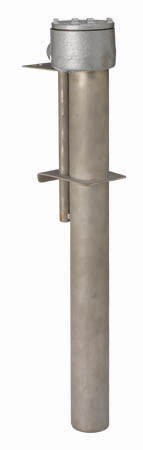

DAS Series, Phosphate Heaters

WATTS

VOLTS

HOT ZONE
In./(mm)

OVERALL
LENGTH
In./(mm)

MODEL
NUMBER

SHIP WGT.
Lbs./(kg)

1000

120
240

7
(180)

11
(280)

DAS1111-P4
DAS1211-P4

17
(8)

2000

240
480

12
(305)

17
(430)

DAS2217-P4
DAS2417-P4

20
(9)

3000

240
480

18
(460)

23
(585)

DAS3223-P4
DAS3423-P4

24
(11)

3500

240
480

21
(535)

29
(735)

DAS3.5229-P4
DAS3.5429-P4

30
(14)

4000

240
480

28
(710)

35
(890)

DAS4235-P4
DAS4435-P4

36
(16)

5000

240
480

33
(840)

41
(1040)

DAS5241-P4
DAS5441-P4

42
(19)

6000

240
480

39
(990)

47
(1320)

DAS6247-P4
DAS6447-P4

48
(22)

8000

240
480

49
(1245)

59
(1500)

DAS8259-P4
DAS8459-P4

58
(27)

10000

240
480

62
(1575)

71
(1900)

DAS10271-P4
DAS10471-P4

64
(30)

*Thermal protection designator. Single phase standard. Three phase available as option. Add "-3" before thermal protection designator. Other configurations available, consult factory.
** Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.

EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.

OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.

CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

•	Grounded construction.
•	Thermal protector built in. Replaceable P4 protector standard.
•	Non-floating construction.

CERTIFICATIONS: CE (except 600 volts).

SIZES: 1,000 watts to 10,000 watts.

VOLTAGES: 120-600 voltsSingle phase standard, three phase available.

OPTIONS AVAILABLE (consult factory):

•	Thermal protectors: Replaceable high temperature protectors or resettable P2 bi-metal switches in two temperature ranges.
•	Special configurations and lengths.
•	Longer wire and conduit lengths.
•	Temperature and level controls sized to match the heater.

WATTS	VOLTS	HOT ZONE In./(mm)	OVERALL LENGTH In./(mm)	MODEL NUMBER	SHIP WGT. Lbs./(kg)
1000	120 240	7 (180)	11 (280)	DAS1111-P4 DAS1211-P4	17 (8)
2000	240 480	12 (305)	17 (430)	DAS2217-P4 DAS2417-P4	20 (9)
3000	240 480	18 (460)	23 (585)	DAS3223-P4 DAS3423-P4	24 (11)
3500	240 480	21 (535)	29 (735)	DAS3.5229-P4 DAS3.5429-P4	30 (14)
4000	240 480	28 (710)	35 (890)	DAS4235-P4 DAS4435-P4	36 (16)
5000	240 480	33 (840)	41 (1040)	DAS5241-P4 DAS5441-P4	42 (19)
6000	240 480	39 (990)	47 (1320)	DAS6247-P4 DAS6447-P4	48 (22)
8000	240 480	49 (1245)	59 (1500)	DAS8259-P4 DAS8459-P4	58 (27)
10000	240 480	62 (1575)	71 (1900)	DAS10271-P4 DAS10471-P4	64 (30)
Thermal protection designator. Single phase standard. Three phase available as option. Add "-3" before thermal protection designator. Other configurations available, consult factory. * Thermal Overload Protection
